HYSUN POWER
Hysun Mode 2 3.5KW 7KW Portable EV Charger with IEC 62196-2 Charging Plug
● Adjustable Current 8A/10A/13A/16A/32A
● Plug & Play Connector
● Schuko plug; CEE plug; Customized plug Upon Request
● Customized package, handbag, Laser-printed logo,Upon Request
● 3 Years Warranty
📢 Contact us for OEM & distributor pricing.
User-friendly Setting: With adjustable current settings (8/10/13/16/32A), you can choose charge power whatever you want. And the LCD display and LED indicator allow you to know the charging status as well.
Easy Storage & Hassle-Free Travel: Schuko/CEE power plug is easy to use without installation. Durable 5M charging cable can meet your needs in driveways, garages , indoors or outdoors. The handbag is easy in store and you can charge your car at anytime anywhere you need.
Reliability Quality: The Portable EV Charger is rugged and robust, equipped with Over current protection; Ground protection; Surge protection; Over/Under voltage protection; Over temp protection; Leakage protection.
SPECIFICATIONS | |||
Basic Information | Product Code: | HY035P-T2; HY070P-T2 | |
Input Voltage: | 100-240Vac | ||
Rated Current: | Adjustable Current 8A/10A/13A/16A/32A | ||
Rated Power: | 3.5KW@230Vac (16A) ; 7.0KW@230Vac (32A) | ||
Product Specification | Charging Type: | Level 2 | |
Charging Plug: | IEC 62196-2 (Type 2) | ||
Power Plug: | Schuko; CEE; Customized | ||
Charging Cable: | 3x2.5MM²+0.5MM²(16A); 3x6.0MM²+0.5MM²(32A) |
||
Working Environment | Working Temp.: | -30 ℃ to 50 ℃ | |
Humidity: | 0~95% Non-Condensing | ||
IP Rate: | IP 65 for Controller Box; IP 54 for Charging Plug |
||
Crushing Force: | No Damage Under 5000N | ||
Material Performance | Shell: | Thermoplastic; Flame Retardant Grade UL94V-0 | |
Charging Plug Pin: | Pure Copper Silver Plated | ||
Charging Cable: | Halogen Free, Pure Copper Core with TPU Cable Jacket |
||
Mechanical Life: | >10,000 Times | ||
Electrical Protection | Second Level Protection Over Current Protection; Residual Current Protection |
||
Relay Sticking Protection; Surge Protection; Ground Protection |
|||
Over/Under Voltage Protection; Over/Uner Frequency Protection | |||
Over-Temp Protection; Leakage Protection Type B(AC 30mA+DC 6mA) | |||
Dimesion&Package | Control Box Size: | L252*W90*H57mm/L9.92''*W3.54''*H2.24'' | |
Cable Length |
4.5Meter/15ft/Customize |
||
Inner Box |
L34*W34*H14cm/L13.39''*W13.39''*H5.51'' |
||
Outer Carton |
L70*W36*H30cm/L27.56''*W14.17''*H11.81'' |
Q1, Will it Charge a Tesla Model 3?
A1, Yes, it will charge a Tesla Model 3, and you just need a Tesla Adaptor.
Q2, How long is the Charging Cable?
A2, The standard length is 5Meter, But your also can customize the length.
Q3, Does this charger come with a handbag?
A3, Our standard package is not including the handbag, the extra cost for handbag is $5.
Q4, What is the IP rate of this portable EV Charger?
A4, The Control box is IP65 and the Type 1/ Type 2 Charger is IP54.
Q5, Can the current be adjusted on the device itself with a button?
A5, Yes, you can adjust the current by pushing a button. 8amps at 1.9kw, 10amps at 2.4kw, 13amps at 3.0kw, 16amps at 3.5kw and 32amps at 7.4kw.
Q6, How fast does it Charge?
A6, It depends on your vehicle battery capacity, which is measured in the kilowatt-hours of energy it can hold. For example, It will takes around 7 hours to Charge Tesla Model 3 Standard Plus by HY70P-T1, but it will takes around 10 hours to Charge Tesla Model Y Performance by HY70P-T1.
Q7, Can I customize my brand on the product and package?
A7, Yes, We can laser your brand on the charger and control box and We also can customize your package. The mini order for this service is 100pcs.
Q8, How about the delivery time?
A8, For samples, we normally can send within 3 days, and for quantity order, we normally can send within 2-3 weeks.
Q9, Do you provide free sample to test?
A9, For the first sample order, Customer has to pay the sample and shipping cost. But We can refund the sample cost in future quantity order.
Q10, How long are you aging for your portable EV Chargers?
A10, All chargers will age more than 4 hours before shipping to make sure all products delivery to our customers will be working properly.
Q11, What are your warranty terms?
A11, We provide 2 years warranty for our portable EV Chargers. During the warranty period, we will provide technical support with quality analysis report and replace the new parts in free.

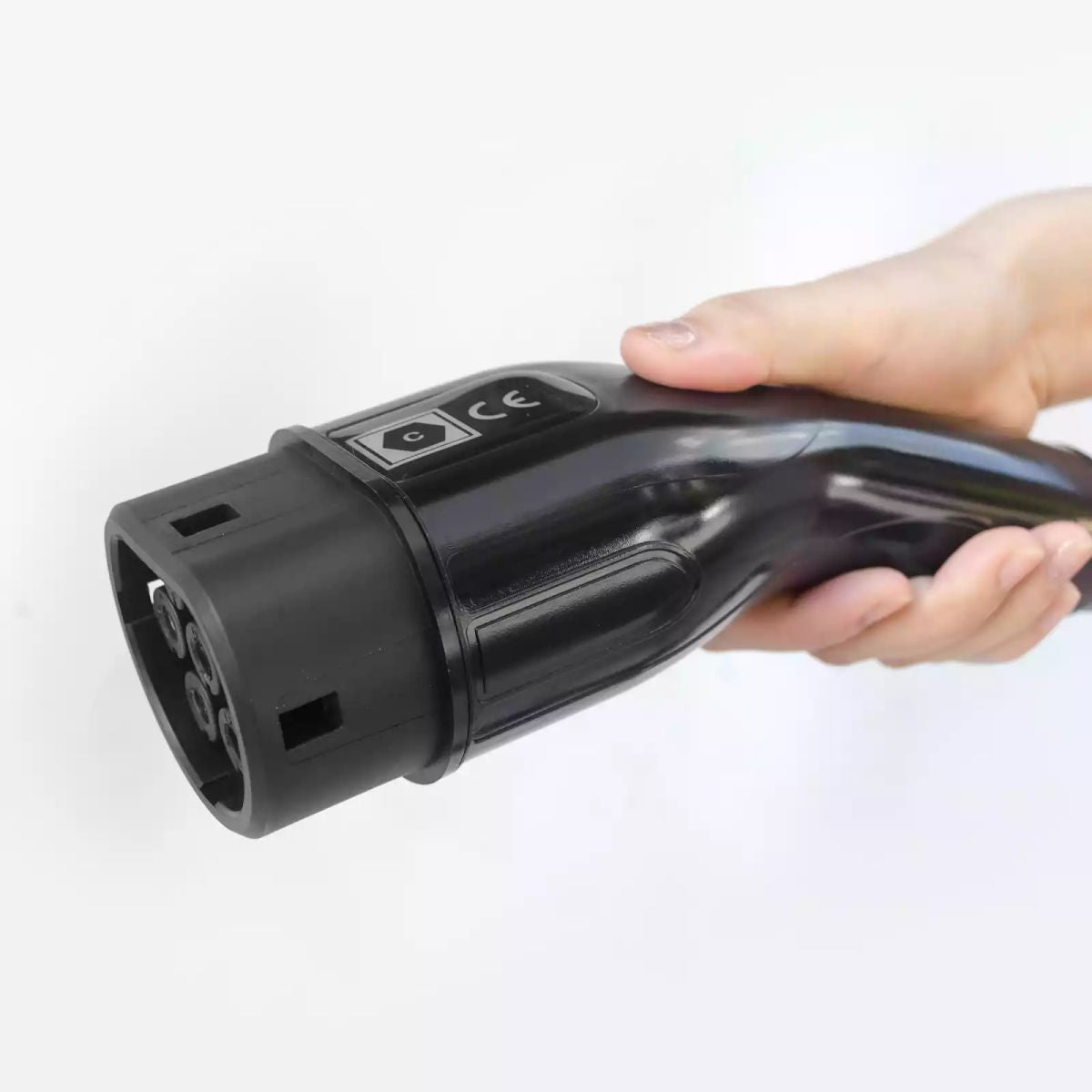

Unique Design
Special Self-Cleaning Design;
Ergonomic and Integrated Design;
Better Conductivity Design;
Plug Option
Different Schuko and CEE Plug options meets customer different requirments
(Other type of Plugs are upon request).
TPU Charging Cable
The halogen-free charging Cable is made of high-quality pure copper core with TPU Cable Jacket.
Excellent Cable Materials
Stable Charging;
High Resistance to the Cold & Heat;
High Resistance to Bending;
Waterproof Charger
The Control box is IP 65 and IEC 62196-2 Type 2 Plug is IP54.
1.8" LCD Display Charging Status
Easy operation to adjust the Current and Set the time.
