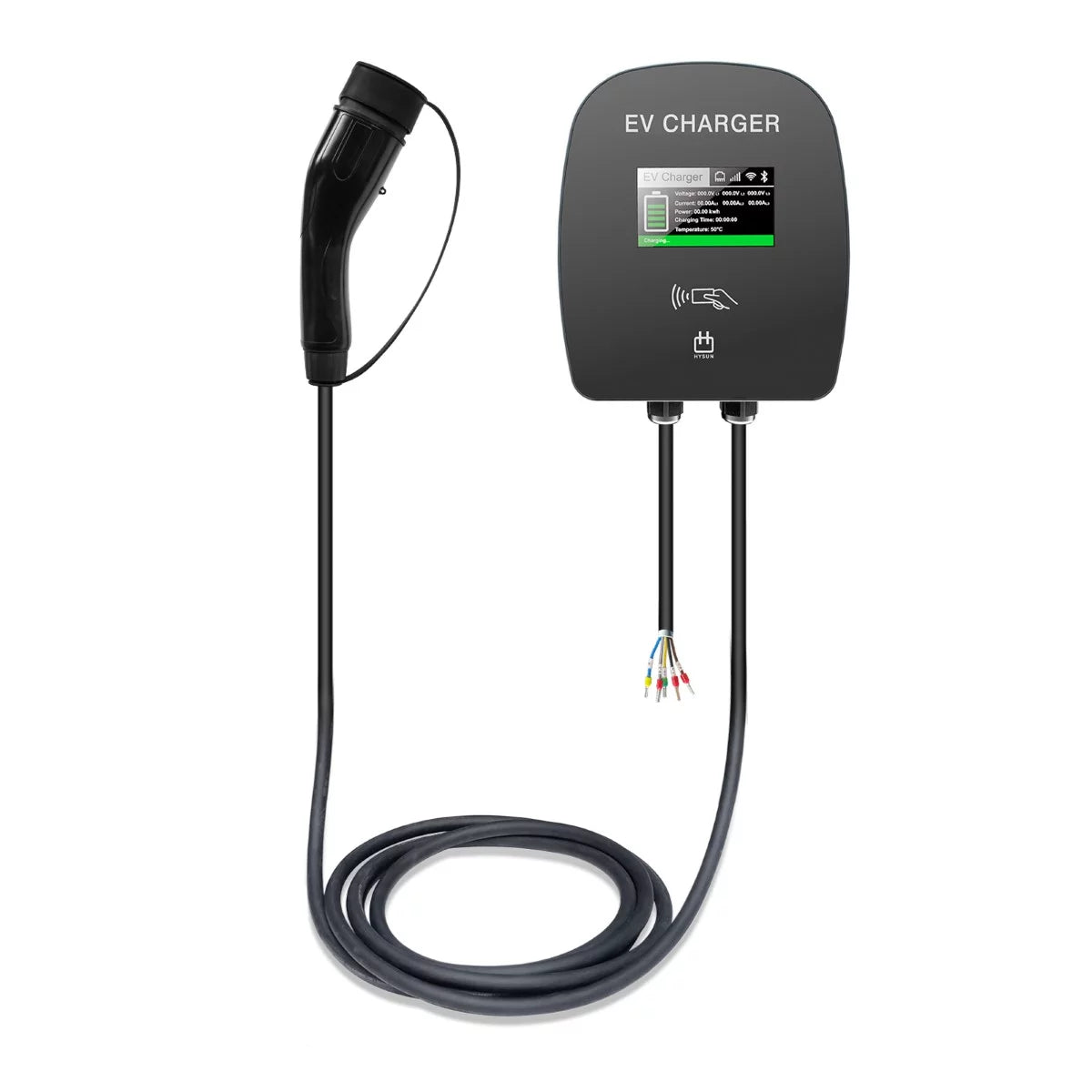

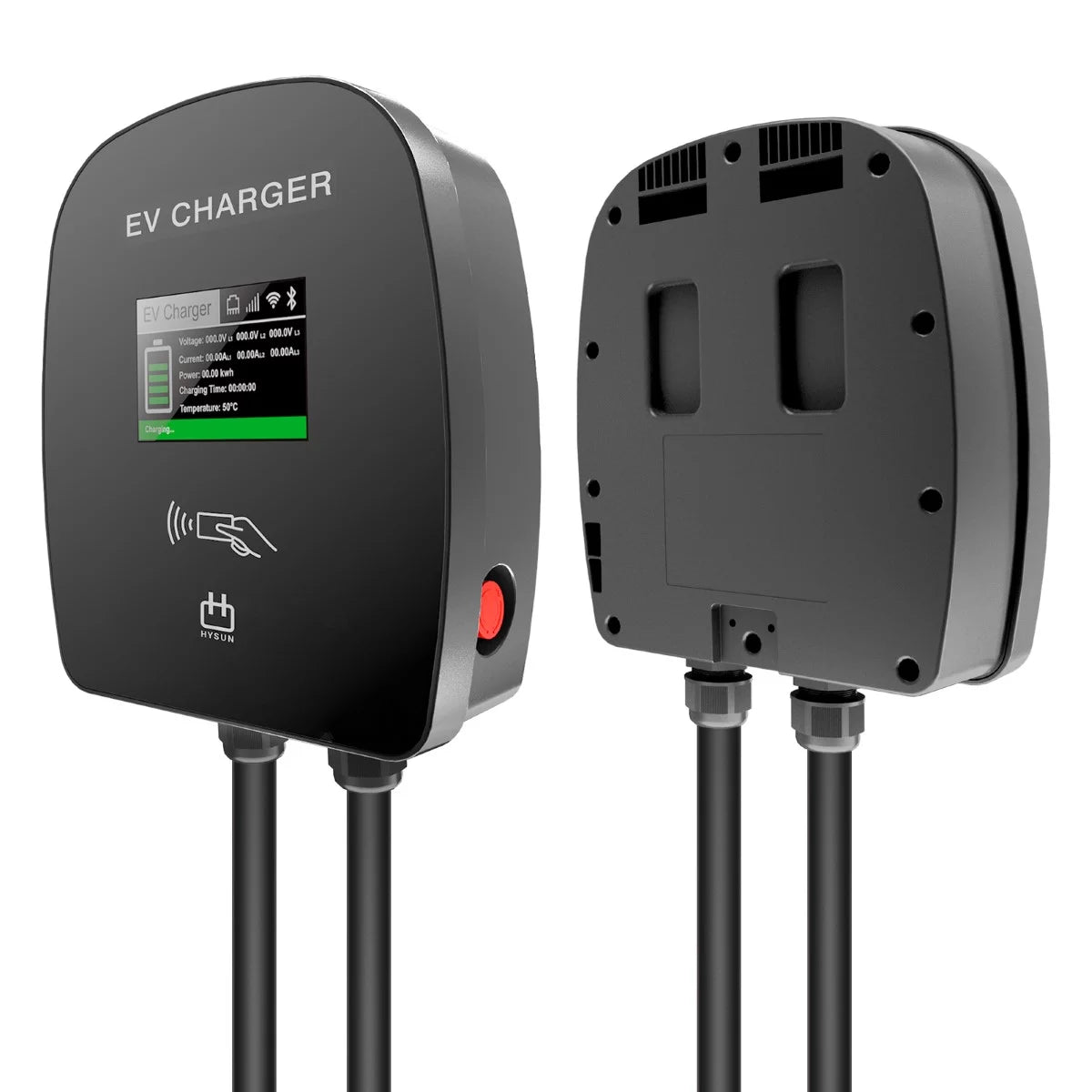

Hysun Model3 7KW 11KW 22KW Wallbox EV Charger type 2 connector Commercial using with OCPP
● Come with Bluetooth,Wi-Fi,Ethernet;
● Charger Management by APP;
● Support the expansion of a 4G Module;
● Suppot RS485 and External Smart Meter;
● Support OCPP 1.6 protocal;
● Dynamics Load Balance available;
📢 Contact with us to get OEM Price and Distributor Price.
Introducing our cutting-edge Smart WALLBOX EV Charger, designed with the latest technology to provide efficient and reliable charging solutions for electric vehicles. With a focus on intelligence and safety, our EV charger offers a host of features that make it stand out from the competition.
Intelligent Features:
Home Using: Equipped with Bluetooth, Wi-Fi, and Ethernet capabilities, our Smart WALLBOX EV Charger allows seamless connectivity for remote monitoring and control. Stay connected and in control of your charging sessions with the convenience of our user-friendly mobile app.Public Using: Our Smart WALLBOX EV Charger is designed to be future-proof, supporting the OCPP 1.6 protocol. This industry-standard protocol enables seamless integration with charging networks and management systems, offering flexibility and interoperability. Additionally, the integration of RS485 and External Smart Meter compatibility enables advanced monitoring and management of energy consumption.
Safety Features:
RCD Protection: The Type B (AC30mA + DC6mA) residual current protection offers a high level of safety during charging sessions, effectively minimizing the risk of electrical hazards.Over Current and Over Temp. Protection: Experience peace of mind with our second-level over current and over-temperature protection, safeguarding your EV charger and vehicle from potential damage caused by excessive current or high temperatures. This ensures the longevity and reliability of your charging equipment.
Over Voltage and Under Voltage Auto. Recovery: Automatic recovery for over voltage and under voltage ensures stable and reliable charging, even in fluctuating power conditions.
Relay-sticking Protection: It proactively monitors the performance of the relay, ensuring smooth and uninterrupted charging operations.
Pen-Fault Protection: Our EV charger features pen-fault protection, further enhancing safety and preventing potential electrical faults.
SPECIFICATIONS | ||||
Basic Information | Product Code: | HY070W3-T2 | HY110W3-T2 | HY220W3-T2 |
Input Voltage: | 230Vac±15% | 380Vac±15% | 3800Vac±15% | |
Rated Current: | 8~32A | 8~16A | 8~32A | |
Rated Power: | 7KW | 11KW | 22KW | |
Product Specification | Charging Type: | Level 2 | ||
Charging Plug: | IEC62196-2(Type2) | |||
Power Plug: |
CEE Blue-3Pin |
CEE Red-5Pin Hardwire-5Cord |
CEE Red-5Pin Hardwire-5Cord |
|
Charging Cable: | 3X6.0mm²+0.5mm² | 5X2.5mm²+0.5mm² | 5X6.0mm²+0.5mm² | |
APP Control | Start Charging and Stop Charging | |||
View Historical Charging Record | ||||
Select a Charging Schedule | ||||
Set Charging Current | ||||
User Interface | LED Indicator ; LCD Display; | |||
Communication Interface | OCPP 1.6J; Bluetooth; WI-FI; Ethernet; 4G; RFID Card | |||
Smart Support | Dynamics Load Balance; OCPP Communication with the third-party platform | |||
Working Environment | Working Temp.: | -25℃~55℃(-35℃ Optional) | ||
Humidity: | 5~95% Non-Condensing | |||
IP Rate: | IP 65 | |||
Work Altitude: | <2000m | |||
Material Performance | Shell: | Thermoplastic; Flame Retardant Grade UL94V-0 | ||
Charging Plug Pin: | Pure Copper Silver Plated | |||
Charging Cable: | Halogen Free, Pure Copper Core with TPE Cable Jacket | |||
Mechanical Life: | >10,000 Times | |||
Electrical Protection | Over current protection; Residual current protection; Ground protection; | |||
Surge protection;Over/Under voltage protection; Over / Under frequency protection; | ||||
Over temp protection; Leakage protection Type B (AC 30mA+DC6mA); | ||||
Dimension & Package | Control Box Size: | L285 x W245 x H88mm | ||
Cable Length: | 4.5Meter / Customized | |||
Inner Box: | L447 x W337 x H185mm | |||
Outer Carton: | L690 x W460 x H390mm |
Q1, Can I charge for Tesla ?
A1, Yes, you just need a Tesla Adaptor.
Q2, How long is the Charging Cable?
A2, The standard length is 5Meter, But you also can customize the length.
Q3, What is the IP rate for this Wallbox EV Charger?
A3, The IP rate is IP65.
Q4, Can you make customized EV Charger ?
A4, Yes, We are EV Charger Manufacturer located in shenzhen since 2019 and Our Strong R&D supports OEM ODM service.
Q5, What is your network options ?
A5, You can use Bluetooth for the local operation. And also you can use WI-FI, Ethernet, 4G to connect the net work.
Q6, Can I control the EV Charger through the Mobile APP ?
A6, Yes, You need download our APP from Apple store or Scan the QR code. If you want to develop your own brand APP, we also can customize it for you.
Q7, How about the delivery time?
A7, For samples, we normally can send within 3 days, and for quantity order, we normally can send with 2-3 weeks.
Q8, What Protocol do you use for your wall mounted EV Charger ?
A8, We use OCPP 1.6-J protocol and OCPP 2.0 is under developing which plan to launch in this October.
Q9, How long are you aging for your Wallbox EV Chargers?
A9, All chargers will age more than 4 hours before shipping to make sure all products delivery to our customers will be working properly.
Q10, Which standard did you use for your Wallbox EV Charger?
A10, For EU Standard EV Charger, we are following the EN IEC 61851-1:2019, EN IEC 61851-21-2:2021, EN IEC 61000-6-1:2019 , EN IEC 61000-6-3:2019 .
