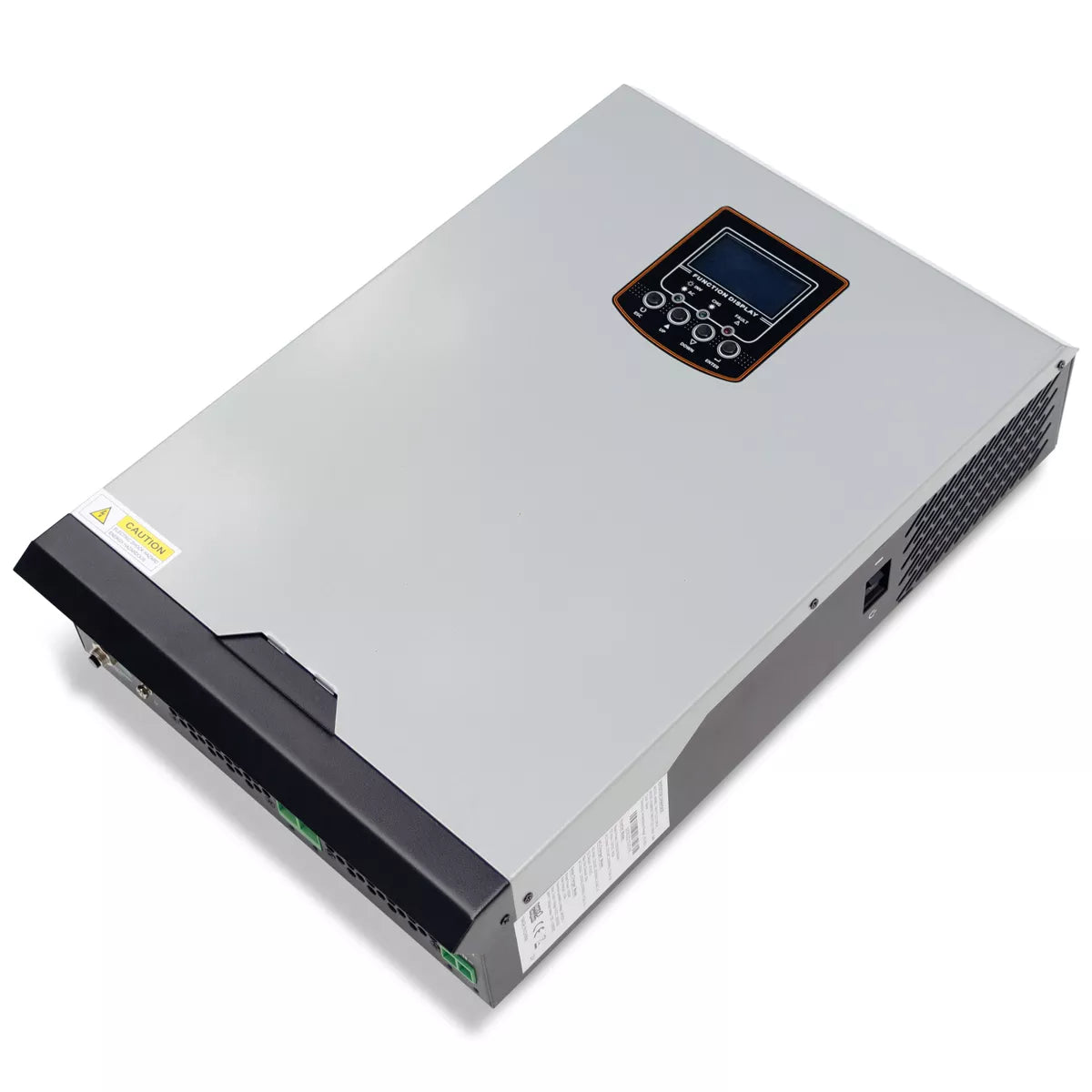

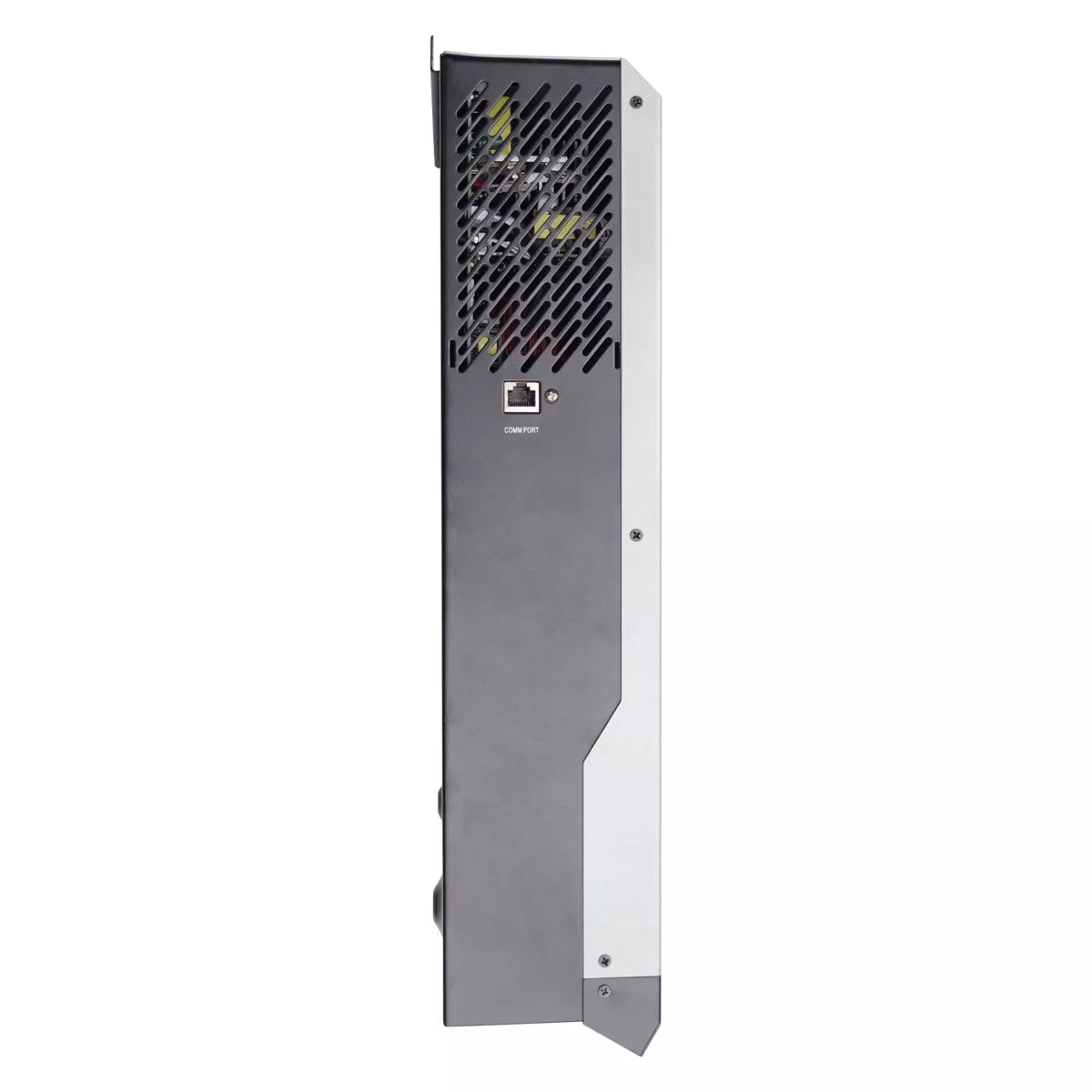

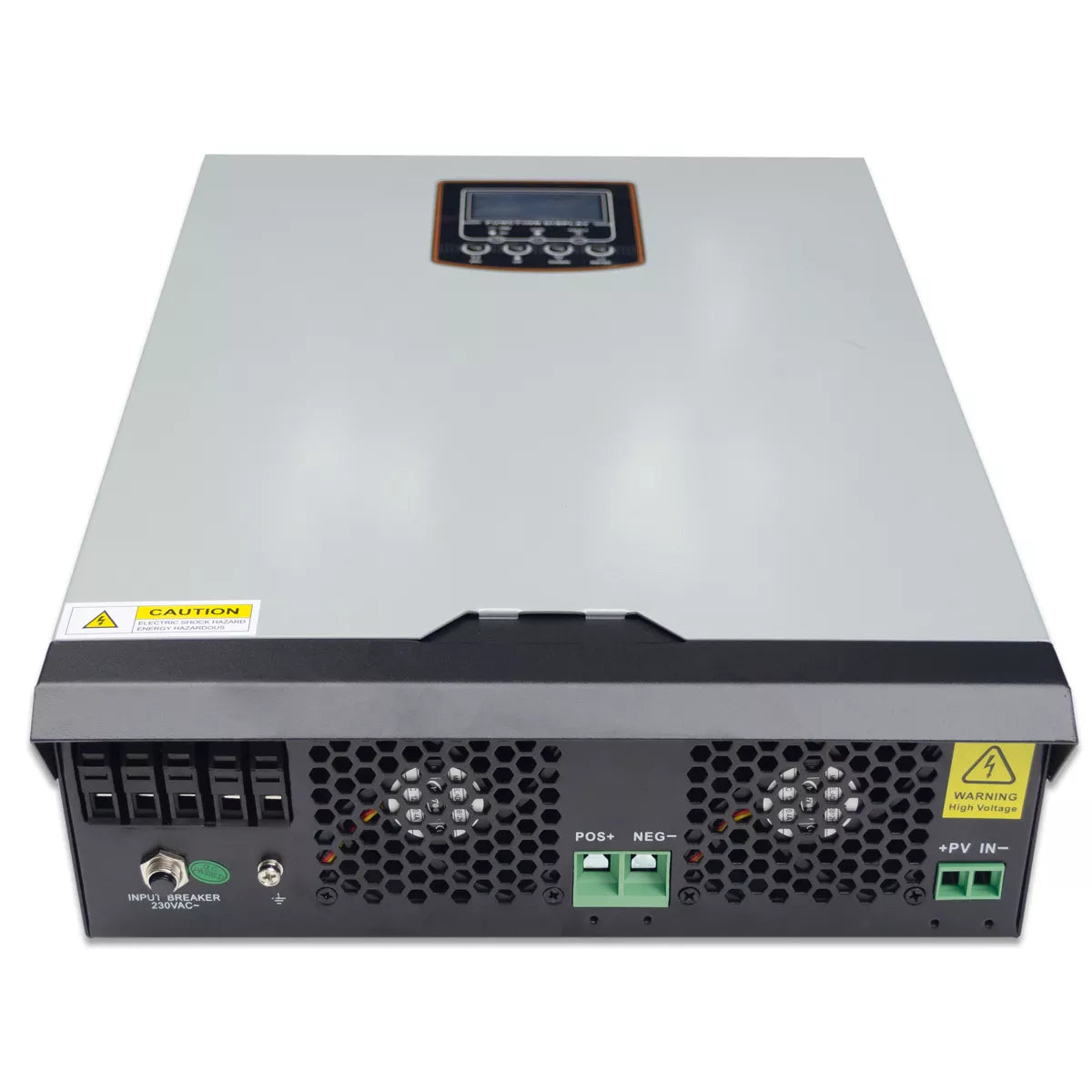

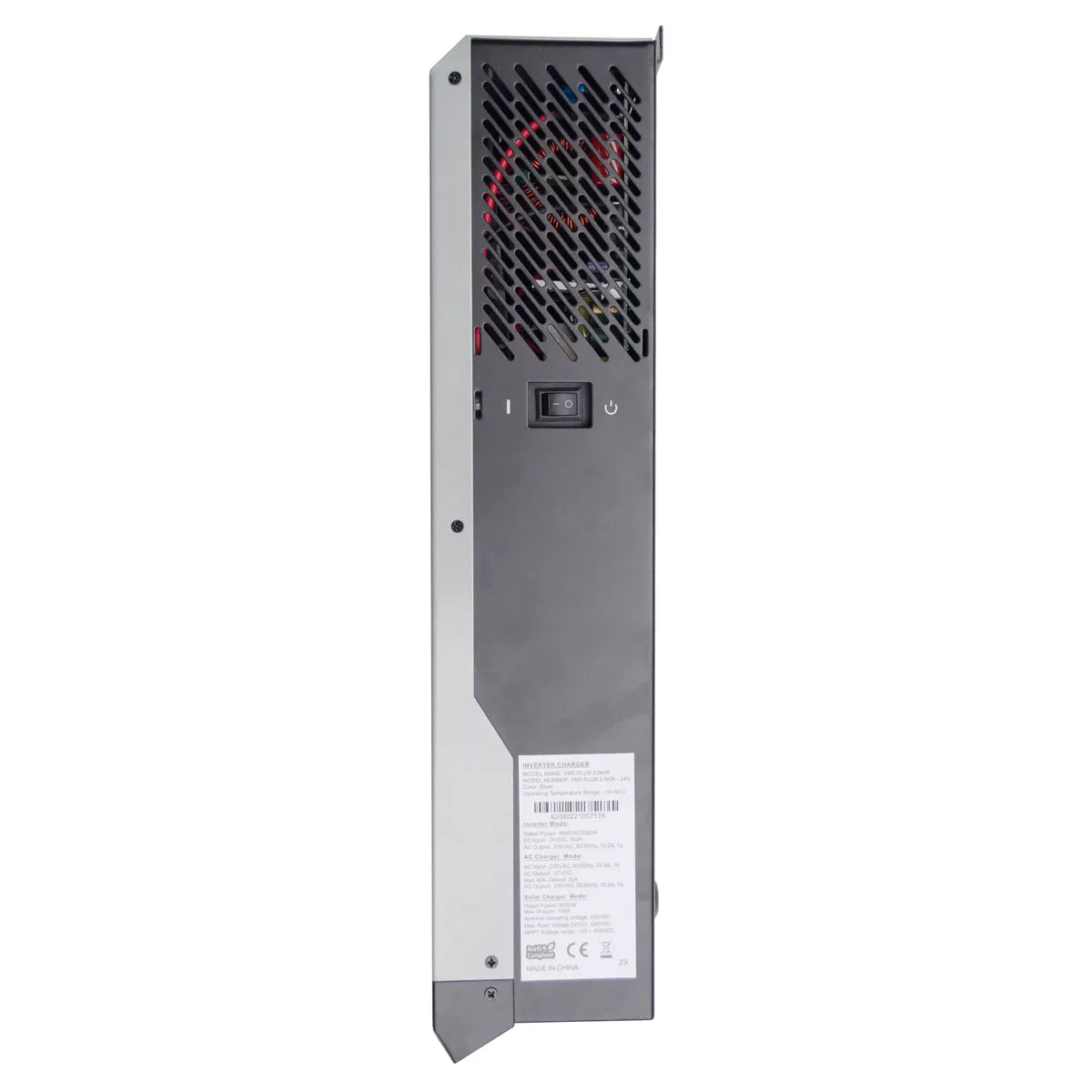

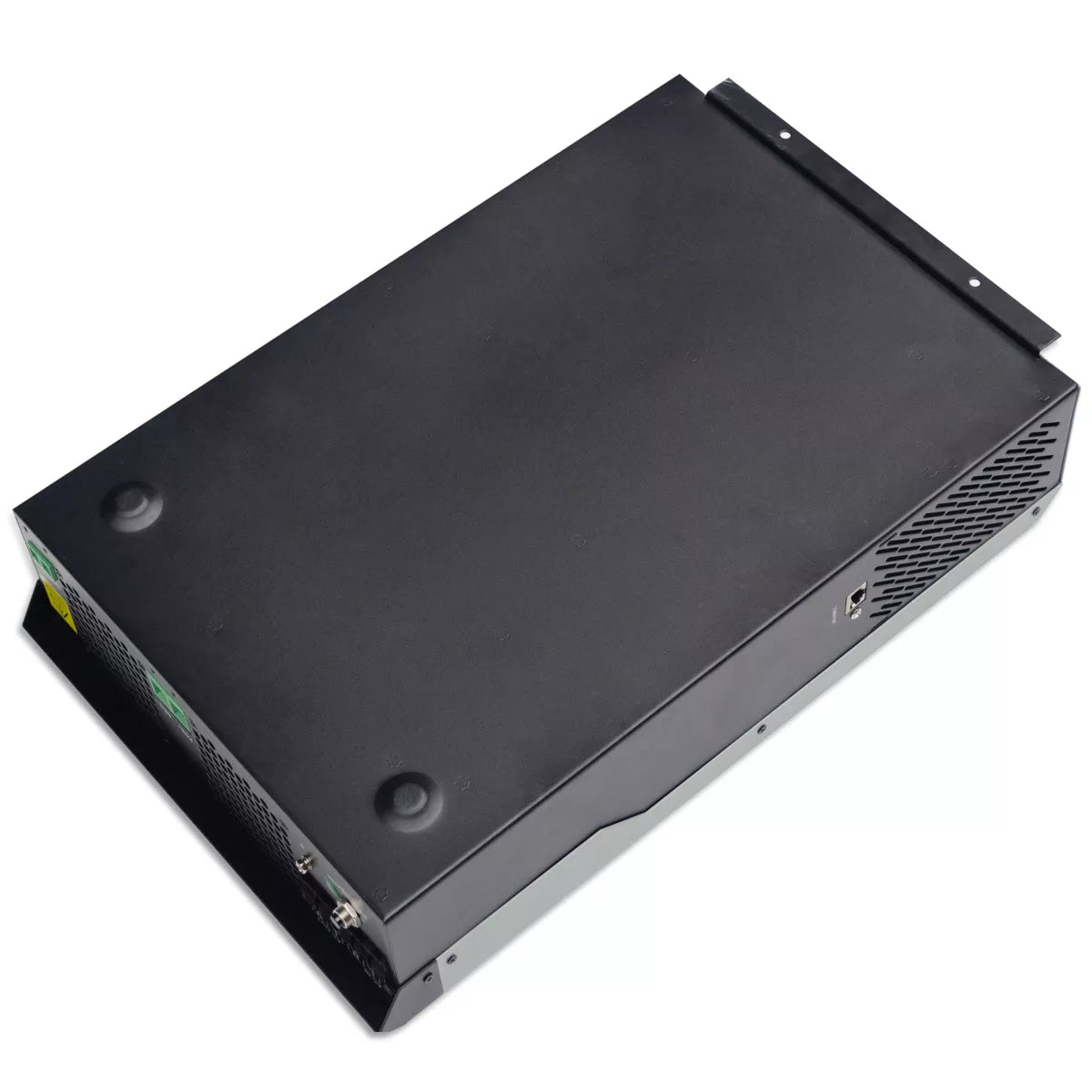

HYSUN 3.5KW Off-Grid Hybrid Solar Inverter
● Solar Inverter/Solar Charger/Battery Charger /AC Charger;
● Pure Sine wave inverter;
● LCD display for fast setting;
● Compatible to mains voltage or generator power;
● Cold Start Function;
● Built-in dust filter kit for harsh environments;
📢 Contact with us to get OEM Price and Distributor Price.
Description:
1, This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size.2, LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar Charger priority, and acceptable input voltage based on different applications.
3, DPS digital control technology, double conversion online design, input PFC technology, input power up to 0.99, high-efficiency inverter topology, higher output efficiency.
4, Battery balancing function to optimize battery performance, higher efficiency for energy storage.
| SOLAR INVERTER SPECIFICATION | |
| Model No. | HY-3.5KW-SI |
| Off-Grid | 24V |
| Waveform | Pure sine wave |
| Input Voltage | 90-280VAC ( Home Appliances) 170-280VAC (Computer） |
| Output Voltage | 230V±5% |
| Output Frequency | 50/60Hz |
| Output Current | 15.2A |
| Rated Power | 3500W |
| Surge Power | 5s≥150% Load &10s≥110% Load |
| Transfer Time | <10ms(UPS mode)/<20ms (INV mode) |
| Load peak ratio | (MAX) 200% load @ 5S |
| Efficiency (Peak) PV to Inverter | 0.97 |
| Efficiency (Peak) Battery to Inverter. | 0.93 |
| Protections | Overload,Low DC Voltage,Over Temperature |
| Product Size | 100*300*400mm |
| Product Net Weight | 9.5kg |
| Carton Size | 590*390*208 |
| Product Gross Weight | 10.5kg |
| IP Rate | IP20 |
| Humidity | 5% to 95% Relative humidity (Non-condensing) |
| Operating Temperature | -10℃ ~50℃ |
| Storage Temperature | -15℃ ~60℃ |
| Safety Standard | CE EN 62368-1 |
| BATTERY SPECIFICATION | |
| Battery Type | Lithium battery, lead acid battery |
| Battery Voltage | 24Vdc (Adjustable) |
| Floating Charge Voltage | 28.8Vdc (Adjustable) |
| Battery overcharge Protection | 30Vdc (Adjustable) |
| Cold Start Voltage | 23VDC |
| Battery reverse polarity protection | Fuse |
| Communication Connection | RSS-232,USB |
| SOLAR CHARGER / AC CHARGER SPECIFICATION | |
| Solar Charger Type | MPPT |
| Static power(W) | <35W |
| Maximum pv array power) | 5000W 500VDC |
| Maximum PV current | 21A |
| PV Array MPPT Voltage Range | 120~450 VDC |
| Maximum PV Array Open Circuit Voltage | 500Vdc |
| Maximum solar charging current | 80A |
| Maximum AC charging current | 80A |
| Maximum Charge Current | 80A |
