DC EV Charger 120KW
Commercial DC Fast EV Charger
DC Fast Charger
DC EV Charger
DC EV Charger 120KW
ev charging stations
DC Fast Charger


Hysun 120KW Commercial DC Fast EV Charger with CCS Connector

Sale price$0.00

● OCPP-1.6J Charging Protocol
● 7‘’ LCD Touch Screen
● Smart EV Charger with APP Control
● RFID Card included to prevent unauthorized use
● 1 Gun or 2 Gun Optional
● 3 Years Warranty

* Contact with us to get OEM Price and Distributor Price.

Advantages Specifications:
Input Power Input Power Supply: 3 Phase
Input Wiring: 3P+N+PE
Rated  Input Voltage: 400Vac±15%
Input Frequency: 50Hz/60Hz
THD: < 5%
Efficiency: > 95%
Power Factor: > 0.98
Output Power Output Voltage: 150-1000VDC
Max. Current: 200A
Rated Power: 60~240KW
Voltage Accuracy: ≤ 0.5%
Current Accuracy: ≤ ±1%

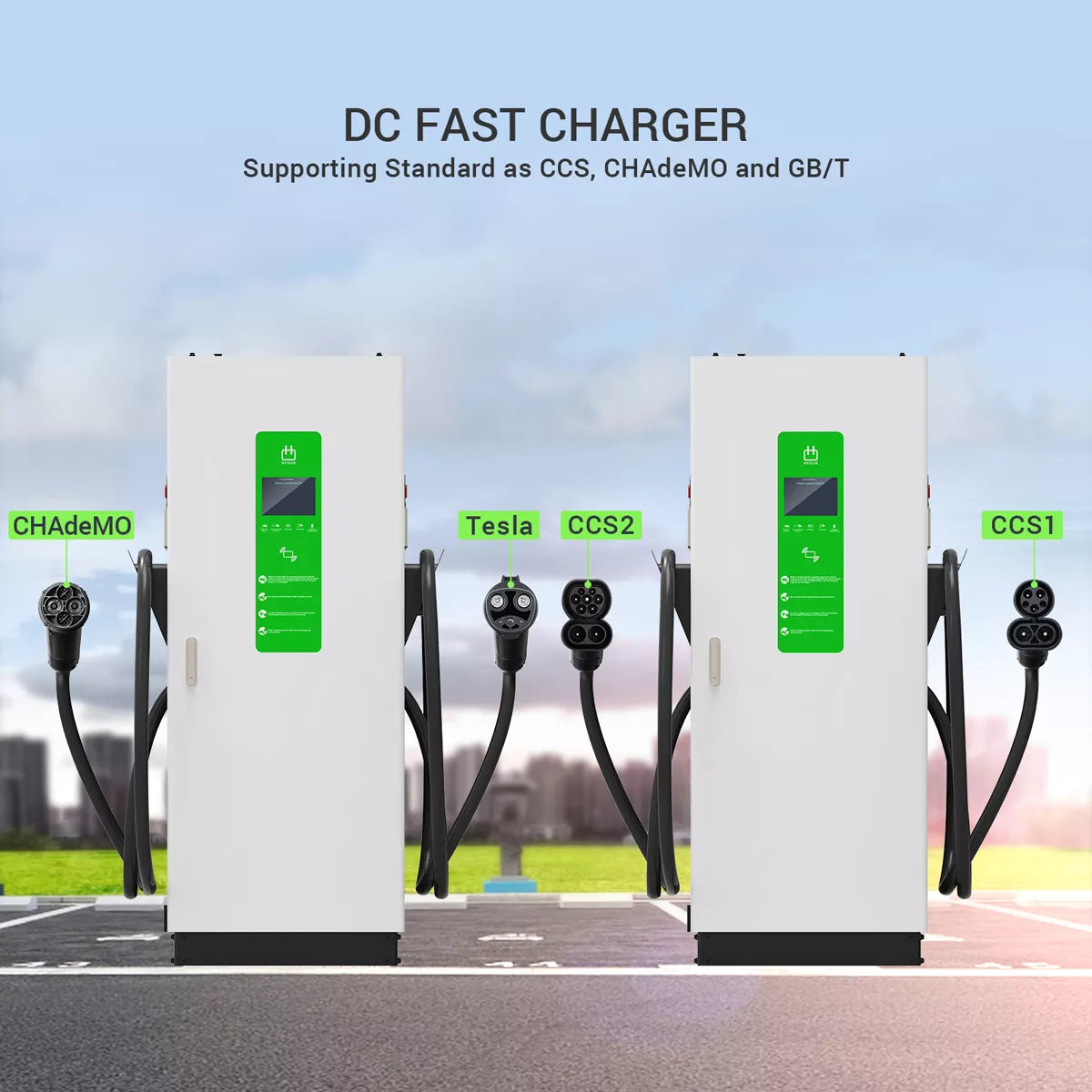

Connector Type: CCS Combo 2;CCS Combo 1 ; CHAdeMO
Number of Connectors: 1 or 2

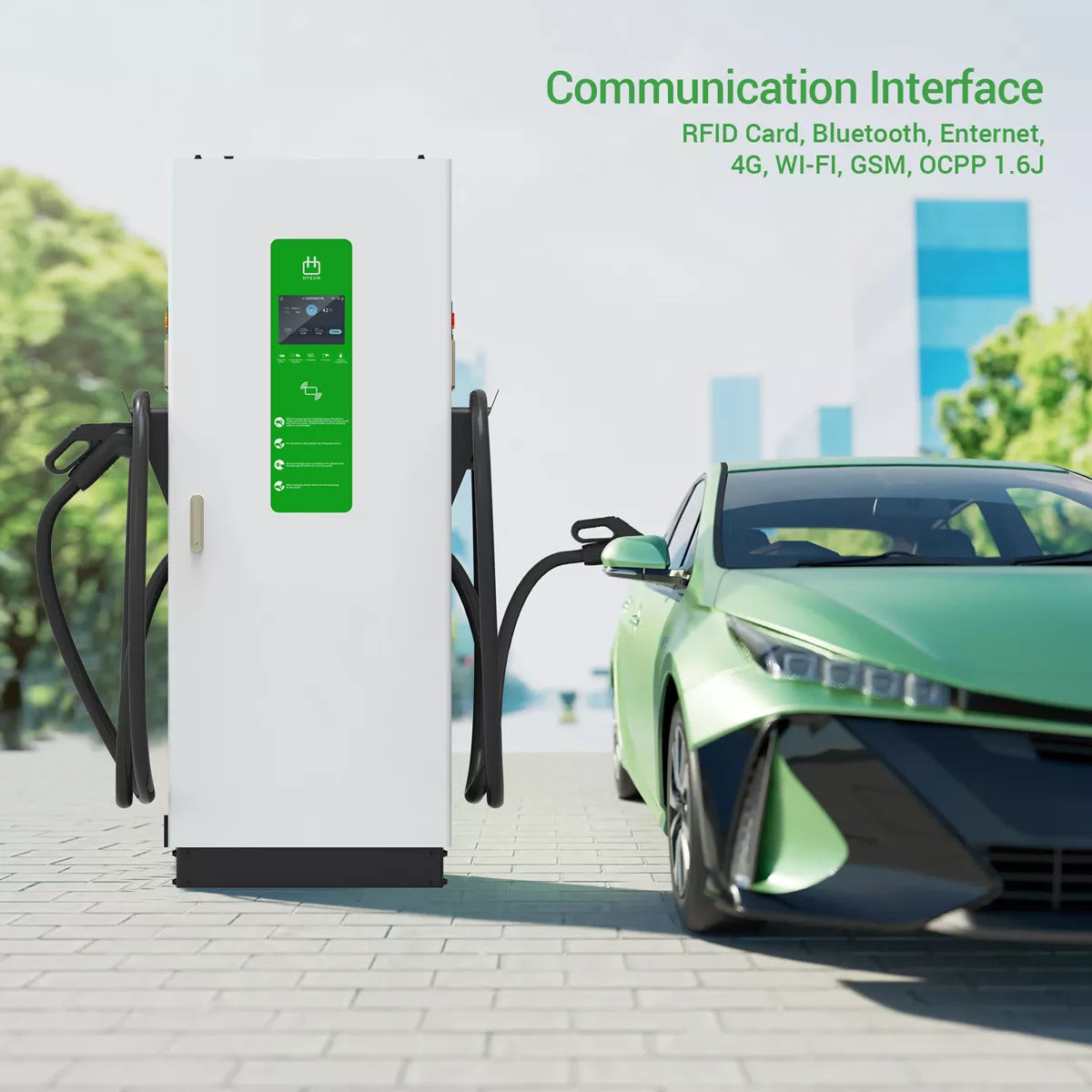

Communication Interface LED Indicator: Green/Blue/Red, Progress Indicator
LCD Display: 7 inch Touch Color Screen
RFID Reader: ISO/IEC 14443 RFID Card Reader
Start Mode: RFID Card or APP
Backend: Ethernet/ WiFi/Bluetooth, Optional: Cellular
Charging protocol: OCPP-1.6J
Safety and Certification Power Meter: Accuracy Class 1.0 energy meter
Residual Current Device: Yes
Internal FUSE: Yes
IP Rate: IP 54
IK Rate: IK 10
Cooling Method: Fan Cooling
Operating Noise Level: <65db
Electrical Protection:

Over/Under Voltage Protection,Over Current Protection, Short Circuit Protection,

Over/Under Temperature Protection,Lightning Protection,Ground Protection

Certification and Conformity: IEC62196-1/-3, IEC 61851-1/-23/-24
Environment Storage Temperature: Minus 40 degree to 75 degree
Operating Temperature: Minus 30 degree to 50 degree
Max. Operating Humidity: 5%~95% RH
Max. operating altitude: 2000m

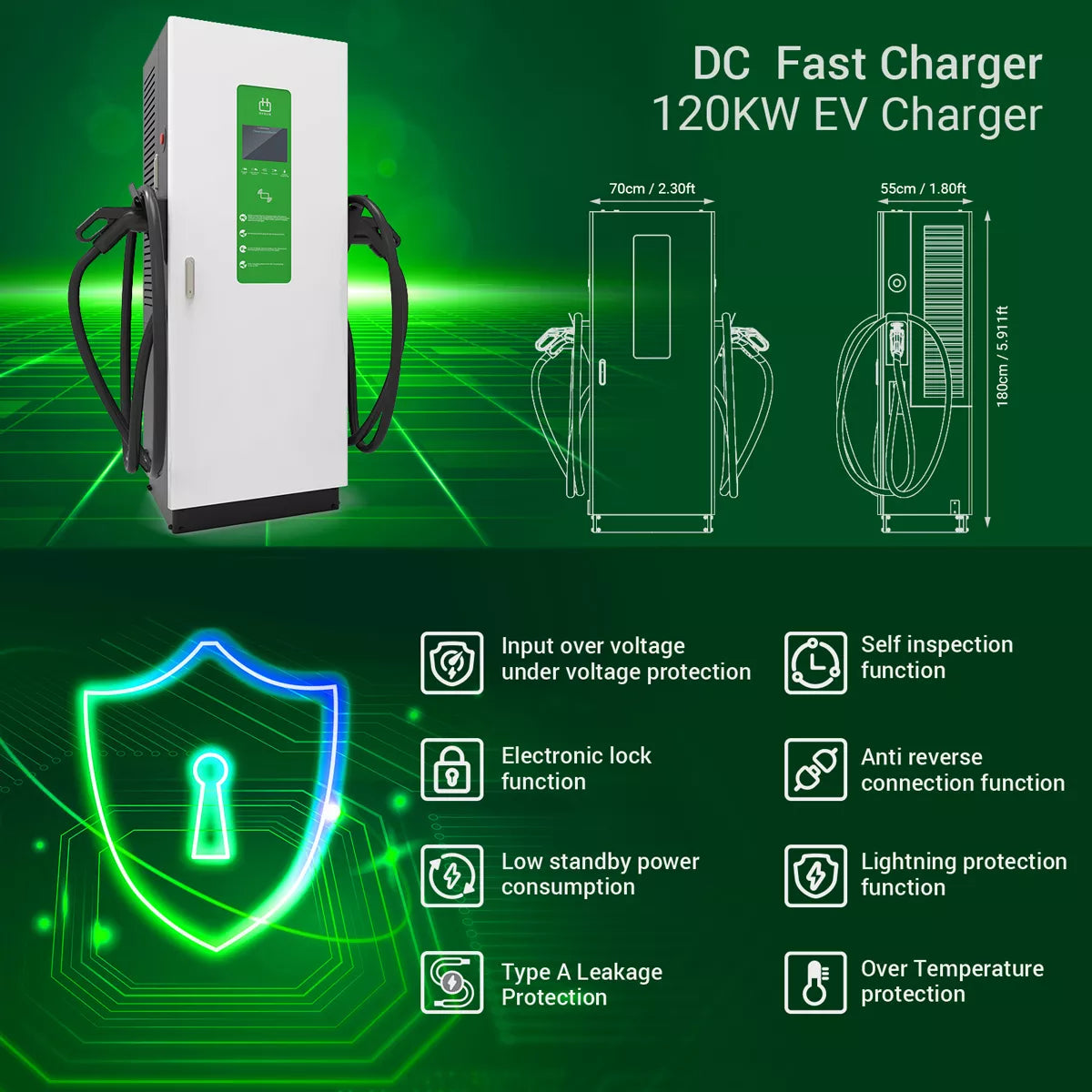

Mechanical Product Dimension:

700mm*550mm*1800mm(W*D*H) 120KW

Package Dimension: 950mm*720mm*1950mm(W*D*H) 120KW
Weight: 257-366kg(Net)/276-386kg(Gross)
DC fast charger 120KW
